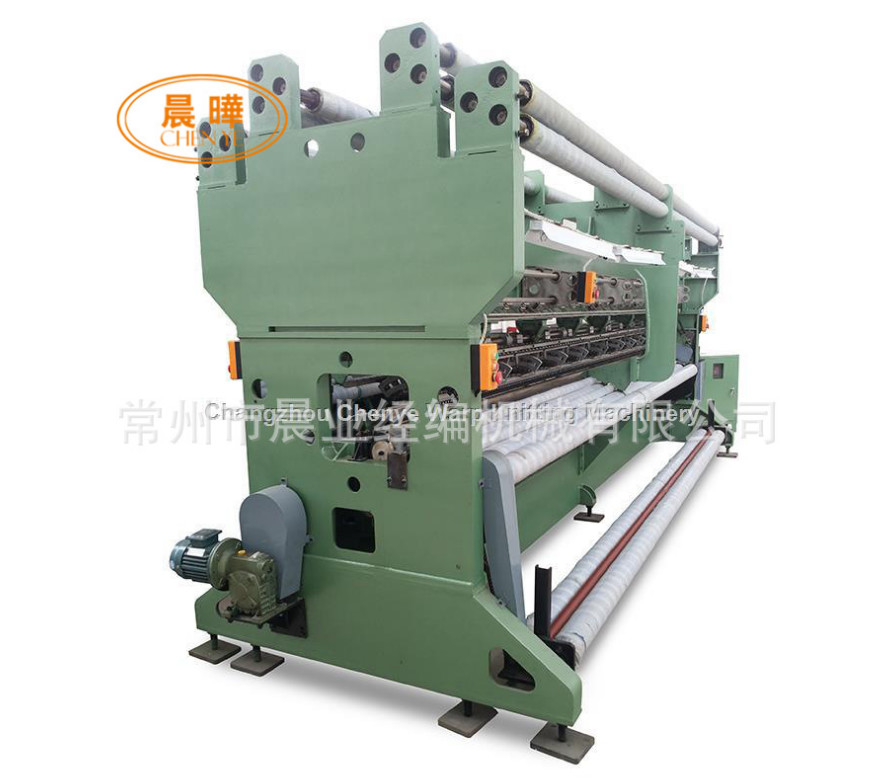

High speed gsingle needle bar raschel machine for sport
net,protecting net
FEATURES
1.Model :single needle bar warp knitting machine
2. Needle type:Latch needle
3. Gauge:E6/E7/E8/E9/E12/E14 (needles/inch)
4. Working width: 135~340"
5. Number of guide bars: 2-6bars
6. Let -off mechanism: open cam gearing and 3-roller positive yarn
let-off system.
7. Take-up: 2 rollers with friction drive, center shaft drive, 2
rollers with friction drive, separately-standing, center shat
drive, separately-standing.
8. Max. speed of main shaft: working speed 200-530rpm
9. Drive motor: main drive motor is 3-11kw, slow speed motor is
0.37-1.5kw
10.Production Capacity: about 500kg-8000kg/24hrs
11.Weight :about 4500-14000/set
12.Packing:The machine is packed by port container, spare parts and
control box are packed in cartons
Machine Advantage :
1. Simple structure, Operate Conveniently.
2. With automatic stop system
3. Cam drive ,stable performance
4. The main motor adopts conversion control , stepless Speed
Regulating
5. Standard Fittings .
WHAT KIND OF NETS CAN BE MADE
It's suitable for manufacturing knotless fishing net, protecting
net, purse net, garment net and shading net.
Suitable Material :
HDPE ,polypropylene ,polyester
SPECIFICATION
| Main type | Machine size | Weight(kg) | Main motor power | Inching motor power | Speed(rpm) |
| SRCA-135 | 4300*1700*2300 | 4500 | 3kw | 0.37kw | 200-530 |
| SRCA-150 | 4900*1700*2300 | 5000 | 4kw | 0.37kw | 200-530 |
| SRCA-180 | 6100*1700*2400 | 7500 | 5.5kw | 0.75kw | 200-530 |
| SRCA-220 | 7300*1700*2400 | 9000 | 5.5kw | 1.5kw | 200-500 |
| SRCA-260 | 8200*1700*2400 | 11000 | 7.5kw | 1.5kw | 200-480 |
| SRCA-340 | 10300*1700*2400 | 14000 | 11kw | 1.5kw | 200-450 |
IMAGES

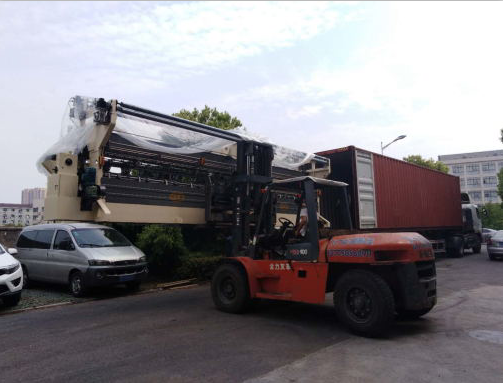

PACKAGING & SHIPPING
The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request.
OUR SERVICES
1. The warranty period of all products sold by our company is one
year, with lifelong technical service support.
2. User's workers can get free technical training in our company to
ensure correct usage and maintenance of equipment.
3. We will arrange special personnel for periodic visits and remind
users to maintain the equipment regularly.
FAQ:
1,Q:Are you a manufacturer or trade company?
A: We are a professional manufacturer holding our own international
trade. For that we can better understand customer's needs and offer
a reasonable price.
2,Q : Are you available for visiting the factory?
A : for long term business , we are really welcome all our friends
to come here and visit our factory in order to On-the-spot
investigation of our production capacity.
3,Q : Is the price changeable?
A : We offer reasonable price for every clients, and the price is
changeable according to the purchase amounting.
4,Q : How about the quality?
A : Professional assembly line work and strict quality test system
can ensure your high quality requirement.
5,Q : How about the after-sale service?
A : We offer after-sale overseas service. Engineers available to
service machinery overseas.
