Knotless Rashal Loom Warp Knitting Machine ForCourt blocking ski
safety net fall prevention net
Professional on different types sports net making. Like football
net, basketball net, Golf, rugby, baseball, volleyball, table
tennis, etc.
Reasonable price of Sports Net Making Machine
Chenye exports high-quality sport net making machine to India,
Kenya, South Africa, Turkey and the Middle East and other countries
for 26 years at reasonable prices. With the same rigorous
manufacturing attitude, we are also good at the manufacture of
Shading Net Machine, Sport Net Machine, Onion Bag Machine,
Agricultural Net Machine and other machines in the field of plastic
net knitting machine.

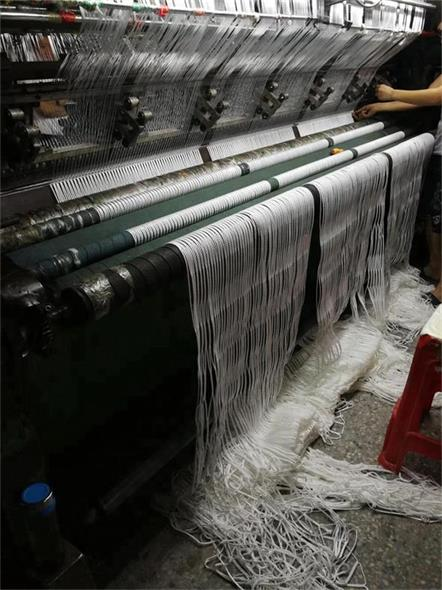

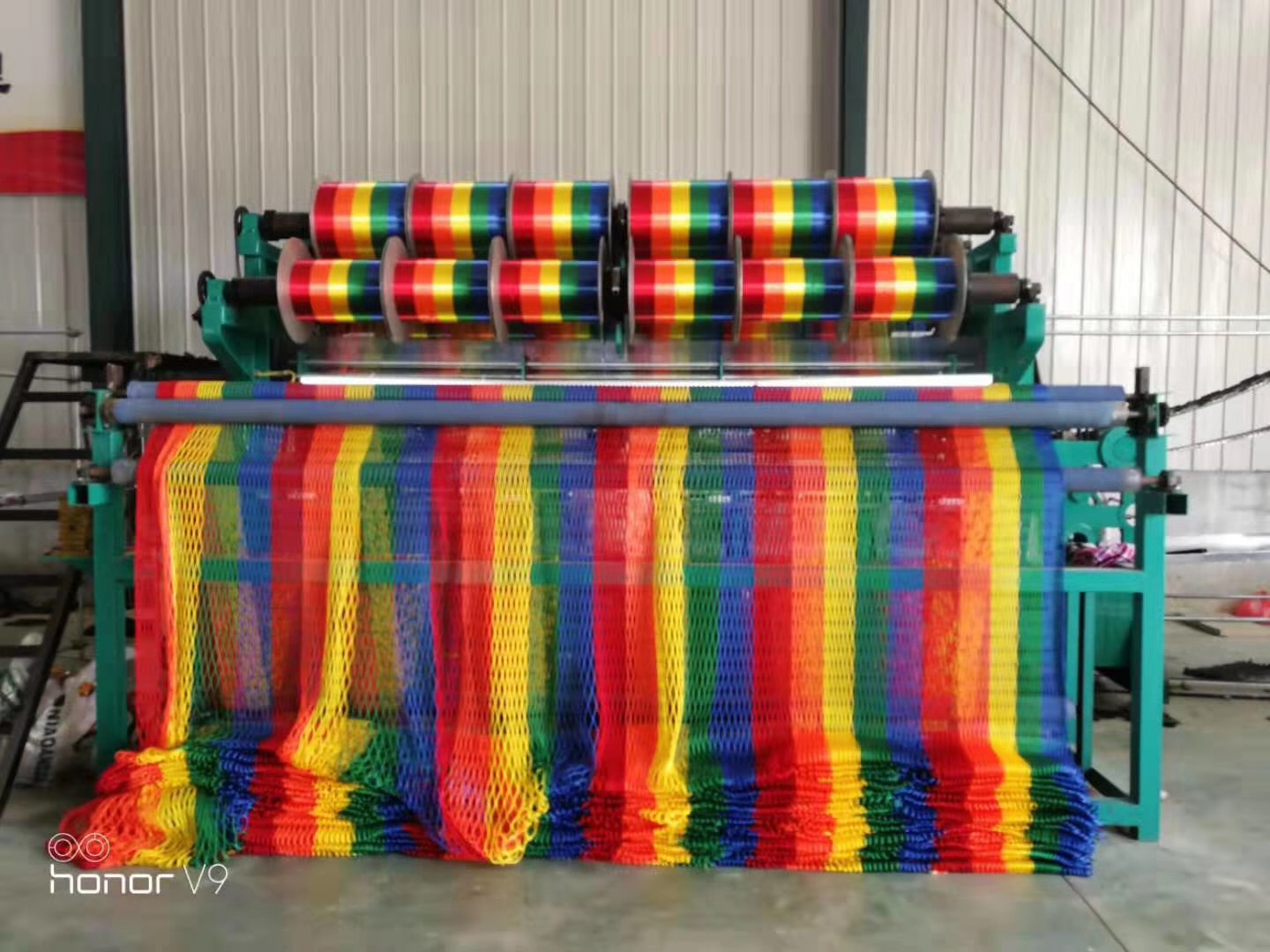

MACHINE PICTURE
Machine's Parameter
1.Model :single needle bar warp knitting machine
2. Needle type:Latch needle
3. Gauge:E3/E6/E7/E8/E9/E12/E14/E16/E18 (needles/inch)
4. Working width: 135~260"
5. Number of guide bars: 2-8bars
6. Let -off mechanism: oilded eccenric gearing and the negative
yarn let-off system.
7. Take-up: center shaft drive, center shaft drive,
separately-standing.
8. Max. speed of main shaft: working speed 200-480rpm
More details please contact supplier for case by case discussion.
| Main type | Machine size | Weight(kg) | Main motor power | Inching motor power | Speed(rpm) | | SROP-135 | 4300*2200*2700 | 4700 | 3kw | 0.37kw | 200-480 | | SROP-150 | 4900*2200*2700 | 5000 | 4kw | 0.37kw | 200-480 | | SROP-170 | 6100*2400*2800 | 7500 | 5.5kw | 0.75kw | 200-420 | | SROP-220 | 7300*2400*2800 | 9000 | 5.5kw | 1.5kw | 200-420 | | SROP-240 | 7600*2400*2800 | 10500 | 5.5kw | 1.5kw | 200-380 | | SROP-260 | 8100*2400*2800 | 11000 | 7.5kw | 1.5kw | 200-380
|
|
APPLICATION
NET SPECIFICATION
| Item Name | Cargo Net,Truck Cover,Trailer Net |
| Material | HDPE/Nylon/PP etc |
| Type | knotless |
| Mesh Size | Customizable |
| Color | Black/white/green/black etc |
| Usage | Mainly used in :Fall protection, Goods protection, Field net,
Fishing |
service
FAQ:
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your
factory, non-woven material, power source, air compressor etc.
Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets,
hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine has one year guarantee for electricity parts and
two years guarantee for mechanism, starting from finished
installation.
5. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty
date
6. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our
technicians 80USD/day for each person.
