UV Treated Firewood Vegetable Onion Potato Fruit Packaging PP
Tubular Net Mesh Raschel Mesh Bag Machine
WHAT KIND OF NETS CAN BE MADE
Net bag :The net bags are divided into small mesh bags and large mesh
bags. Small mesh bags refer to the mesh bags used to pack a small
number of items, such as "grapefruit, toys, cosmetics". Large mesh
bags refer to large mesh bags such as "round screen window mesh
bags, flat wire mesh bags".
Product Description

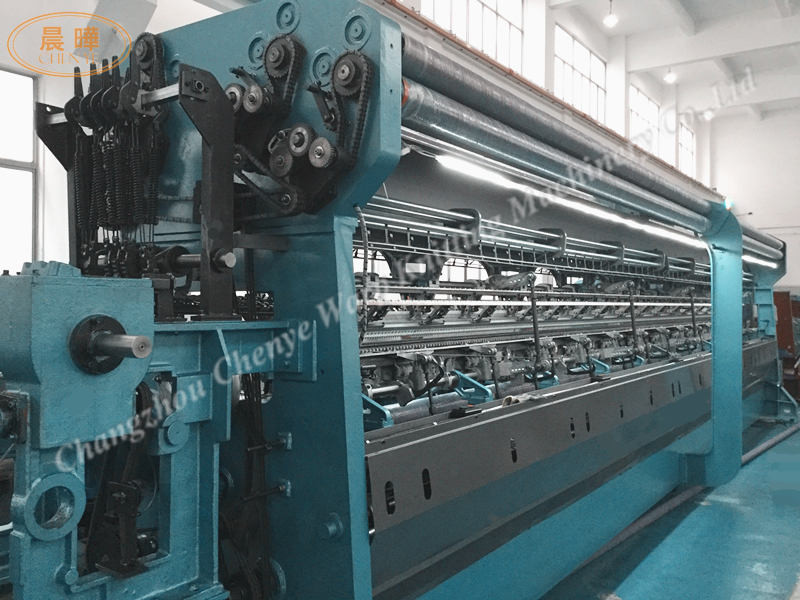

DRCA Double Needle Bar Raschel Machine APPLICATION:This machine is used for shadeing net , vegetable bage,forage
grass net. FEATURES:The machine is equipped with open cam gearing and 3-rollers
positive yarn let-off system
SPECIFICATION
Usage:The machine can produce mosquito net,plaid net, purse net and
chemical fiber garment net. Features: The machine is equipped with open cam gearing, the negative yarn
let-off system.
Needle Type | Latch Needle |
Gauge | E2, E3, E6, |
Bar Number | 2~6 |
Nominal Width | 170" 260" 330" |
Take-up Manner | 2 rollers with friction drive,center shaft drive; 2 rollers with friction drive,separately-standing, center shaft drive, separately-standing |
Machine Type | Machine Size(L*W*H)(mm) | Machine Weight(Kg) | Motor Power(Kw) | Speed(row/minute) |
Main Motor | Inching Motor |
DRCA-170 | 6000*6600*2500 | ~9000 | 5.5 | 0.75 | 600 |
DRCA-260 | 8200*6600*2500 | ~12000 | 5.5 | 1.5 | 600 |
DRCA-330 | 10000*6600*2500 | ~15000 | 7.5 | 1.5 | 600 |
PRODUCTION PROCESS
Durable PP Drawdtring Mesh Net Packaging Vegetable Leno
Polypropylene Mesh Bag
| Size(cm ) | Weight(g) | Capacity(kg ) |
| 30*60 | 18g | 9kg --10kg |
| 30*65 | 20g | 10kg |
| 40*70 | 27g | 20kg |
| 45*75 | 32g | 22kg -23kg |
| 46*83 | 36g | 25kg |
| 50*80 | 35g | 28kg |
| 52*83 | 37g | 31kg |
| 52*85 | 38g | 34kg |
| 52*88 | 40g | 42kg |
Cooperate Terms
- Sample: Free samples for old customers including freight cost of
special express; Freight collect for the first time of the new
customer.
- Payment: T.T or L/C.
- Delivery time: within 20 days or according to the order quantity.
- Quality control: BV , SGS at buyers requests
PACKAGING & SHIPPING
Packaging Details:The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated. If container
is too tigher,we will use pe film for packing or pack it according to customers special request. Port :shanghai
OUR SERVICES
The warranty period of all products sold by our company is one
year, with lifelong technical service support.
User's workers can get free technical training in our company to
ensure correct usage and maintenance of equipment.
FAQ
1.What warp knitting fabrics could be produced from your double
needle bar raschel machines?
Double needle bar raschel machines are used for producing
three-dimensional textiles. Depending on your requirements, our
machines can produce spacer textiles having thicknesses of from 1
mm
up to approximately 65 mm. This technology is also suitable for
producing seamless warp knits and fine lingerie fabrics.
2..What working width of your warp knitting machines?
Non-woven webs can be fed into the knitting zone above or below the
yarn conveyor; two guide bars can be used for stitch forming. We
will provide different models according to different mesh types,
usually the smallest size is 40 inches (1m), for ordinary mesh, the
largest size can be 435 inches (11.04m), for high-speed machines,
usually the largest size is It is 260inches (6.6m)cm) in a gauge
range of E 6 to E 24, and has a production speed of 1200 courses
per minute.
